If you chose an Elegoo Mars or Saturn resin printer for your workshop, you already know the unmatched thrill of seeing hyper-detailed miniatures, intricate jewelry designs, or flawless prototypes emerge from a vat of liquid. Resin printing delivers a smooth finish that FDM printing simply cannot touch.
However, if you are new to the world of liquid photopolymers, your first few attempts can feel slightly intimidating. Failing a resin print isn't just disappointing—it can also be a bit messy.

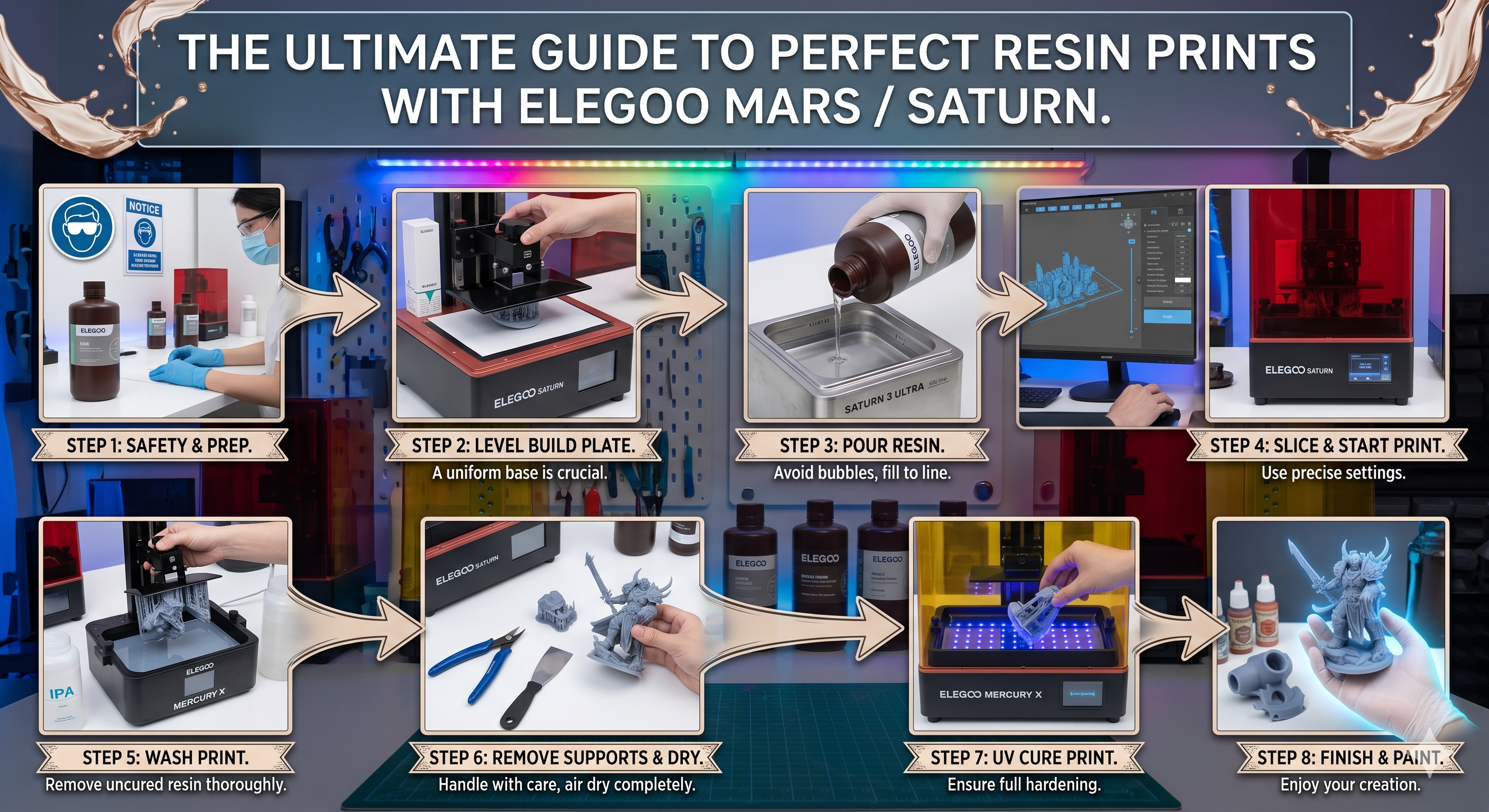

Achieving flawless, crisp results every single time doesn't require luck; it requires a repeatable system. Follow this definitive Elegoo resin printing tutorial to dial in your resin print settings, optimize your workflow, and get perfect prints from day one.
Step 1: Set Up a Safe, Temperature-Controlled Workspace
Before you even turn on your machine, you need to prepare your printing environment. Liquid resin is a chemical compound that requires respect.
- Safety First: Always wear nitrile gloves (not latex, as resin can penetrate latex) and safety goggles, and work in a well-ventilated room.
- Mind the Temperature: Resin hates the cold. If your workshop or garage drops below 20°C (especially during chilly highveld winters), the resin becomes viscous, leading to failed adhesion. Aim for a stable room temperature between 22°C and 25°C.
Step 2: Leveling the Build Plate (The Foundation)
Elegoo printers like the Mars 5 Ultra feature smart auto-leveling sensors, but if you are running an earlier Mars or Saturn model, manual leveling is your first critical step.
- Loosen the build plate screws.
- Place the Elegoo leveling card (or a standard piece of A4 paper) over the LCD screen.
- Home the Z-axis.
- Apply light, even downward pressure on the build plate while tightening the screws in a cross pattern.
- Ensure the paper has a slight, snug resistance when you try to pull it out.
Step 3: Dial In Your Slicing Settings
Don't guess your exposure times! Using incorrect settings is the number one cause of prints failing to stick to the build plate or turning out blurry. Load your model into a slicer like Chitubox or Tango, and use these reliable baseline settings for standard Elegoo resins:
Recommended Baseline Settings for Elegoo Resins
| Setting Parameter | Elegoo Mars Series (Mono LCD) | Elegoo Saturn Series (Large Format) |
| Layer Height | 0.05 mm (50 microns) | 0.05 mm (50 microns) |
| Bottom Layer Count | 5 - 6 layers | 5 - 6 layers |
| Bottom Exposure Time | 30 - 35 seconds | 35 - 40 seconds |
| Normal Exposure Time | 2.3 - 2.8 seconds | 2.5 - 3.2 seconds |
| Lift Distance | 5 - 6 mm | 7 - 8 mm (Larger FEP needs more lift) |
Pro-Tip: Always shake your resin bottle vigorously for 30 seconds before pouring it into the vat to ensure the pigments and photoinitiators are perfectly blended.
Step 4: The Crucial Post-Processing Stage
Once your printer finishes its job, your model is still covered in a layer of sticky, uncured liquid resin. This is where many beginners struggle, trying to manually wash prints in plastic Tupperware containers filled with Isopropyl Alcohol (IPA) and curing them under DIY UV torches.
It’s messy, it’s inefficient, and it often leads to sticky or cracked models.
Enter the Ultimate Workflow Upgrade: The Elegoo Mercury Wash & Cure
To get professional, smooth results without the headache, the Elegoo Mercury Wash & Cure Station is an absolute must-have accessory.
[Finished Print] ➡️ [Pop into Mercury Wash Tank] ➡️ [Spin & Clean] ➡️ [Dry] ➡️ [Place on Mercury Turntable] ➡️ [Even UV Cure]
- The Wash Phase: Instead of splashing IPA around your desk, you place your entire build plate (or detached models) into the sealed Mercury wash bucket. With the press of a button, a magnetic impeller creates a powerful vortex that strips away excess liquid resin from the tightest crevices in minutes.
- The Cure Phase: After letting your model dry, you switch the machine to curing mode. It sits on a 360-degree rotating turntable under a precise array of UV lights, ensuring the plastic hardens uniformly. This removes the stickiness completely and locks in the structural integrity of your print.
Step 5: Post-Cure and Support Removal
If your model used support structures, here is a secret industry trick to remove them cleanly without leaving ugly pits or marks on your print:
The Hot Water Trick: Before you final-cure the model in your UV station, submerge the washed, unfrozen print in warm water for about 30 seconds. The warm water softens the support material, allowing you to peel the supports away effortlessly like a banana skin, leaving a completely pristine surface finish.
Once the supports are off, place the dry model into your Mercury station for its final cure (usually 2 to 5 minutes depending on the size of the object). Over-curing can make the resin brittle, so don't leave it in too long!
Ready for Flawless Results?
Resin 3D printing doesn't have to be a messy guessing game. By pairing your Elegoo Mars or Saturn printer with correct exposure settings and a dedicated Wash & Cure station, you transform the process into a clean, satisfying, assembly-line experience.
Stock up on your favourite resins, dial in those settings, and watch your creations come to life in breathtaking clarity.
