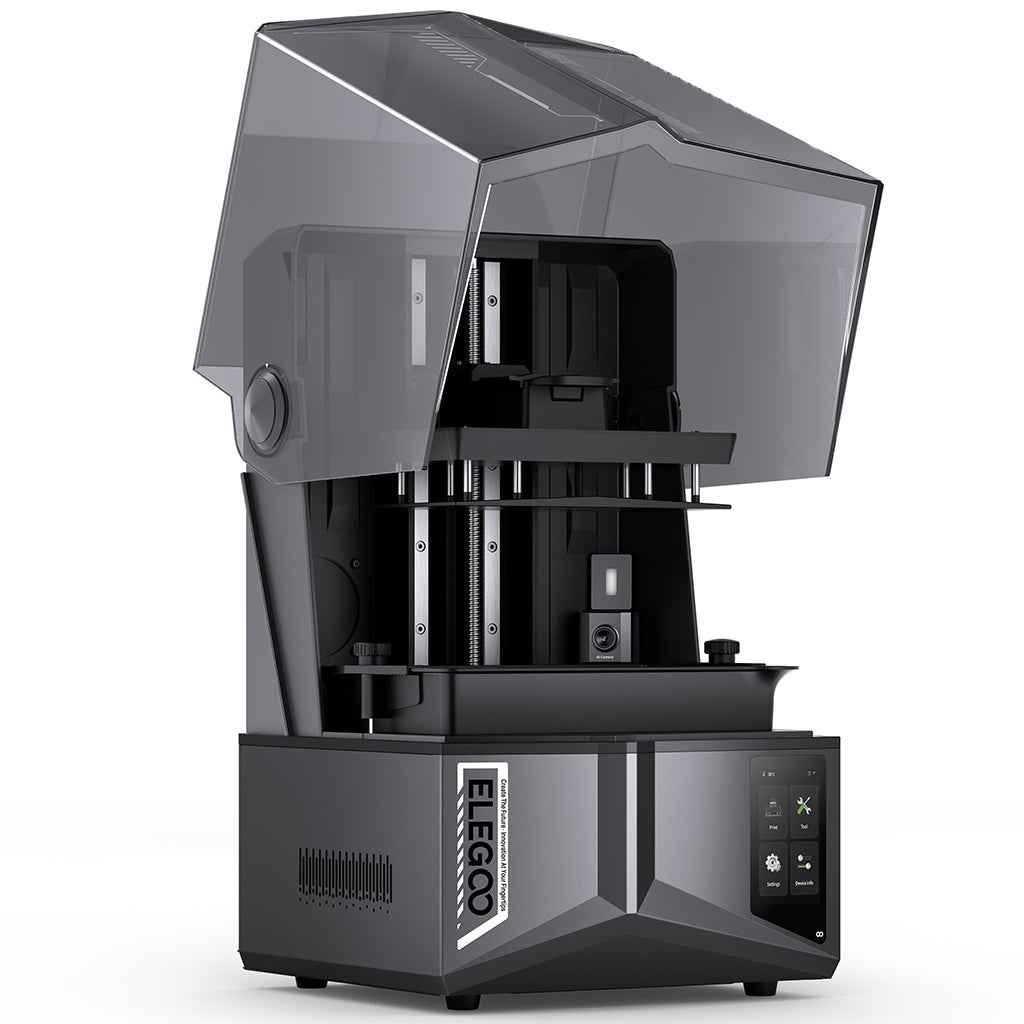

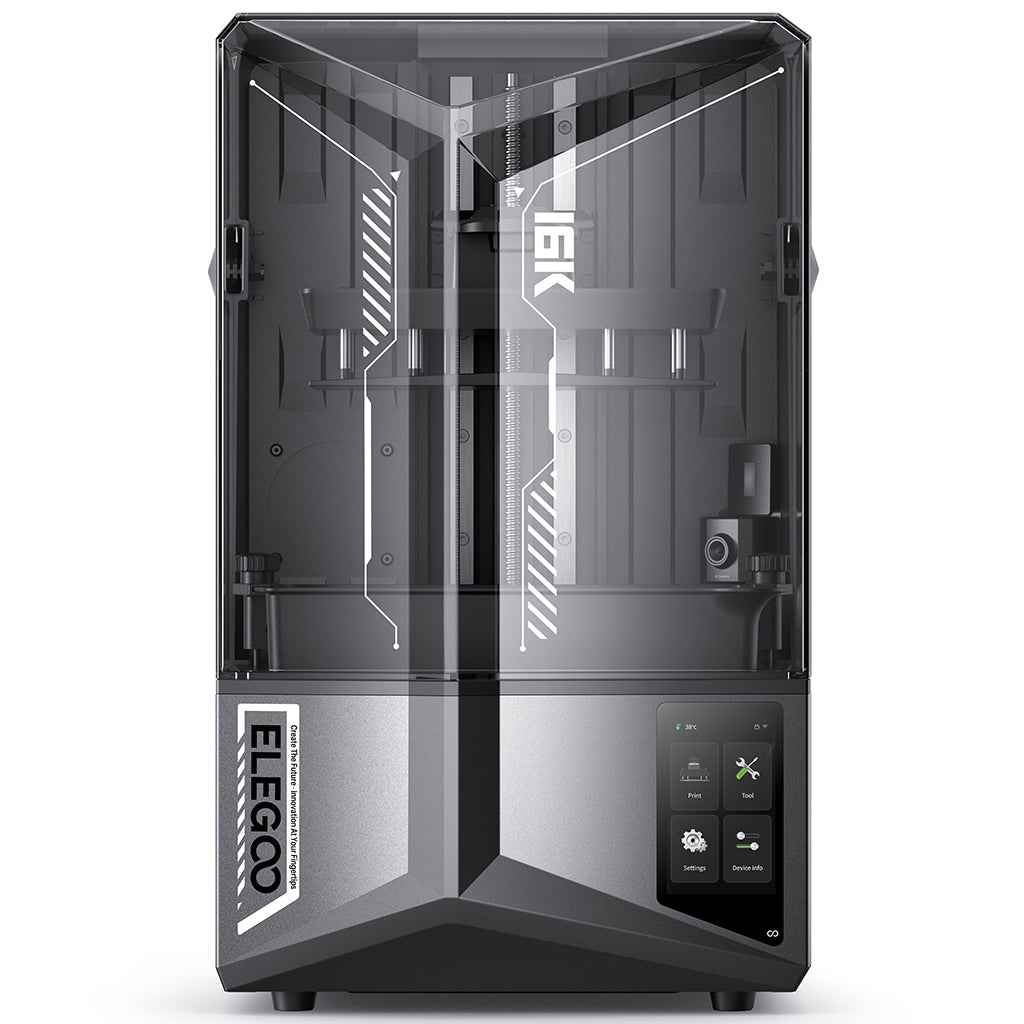

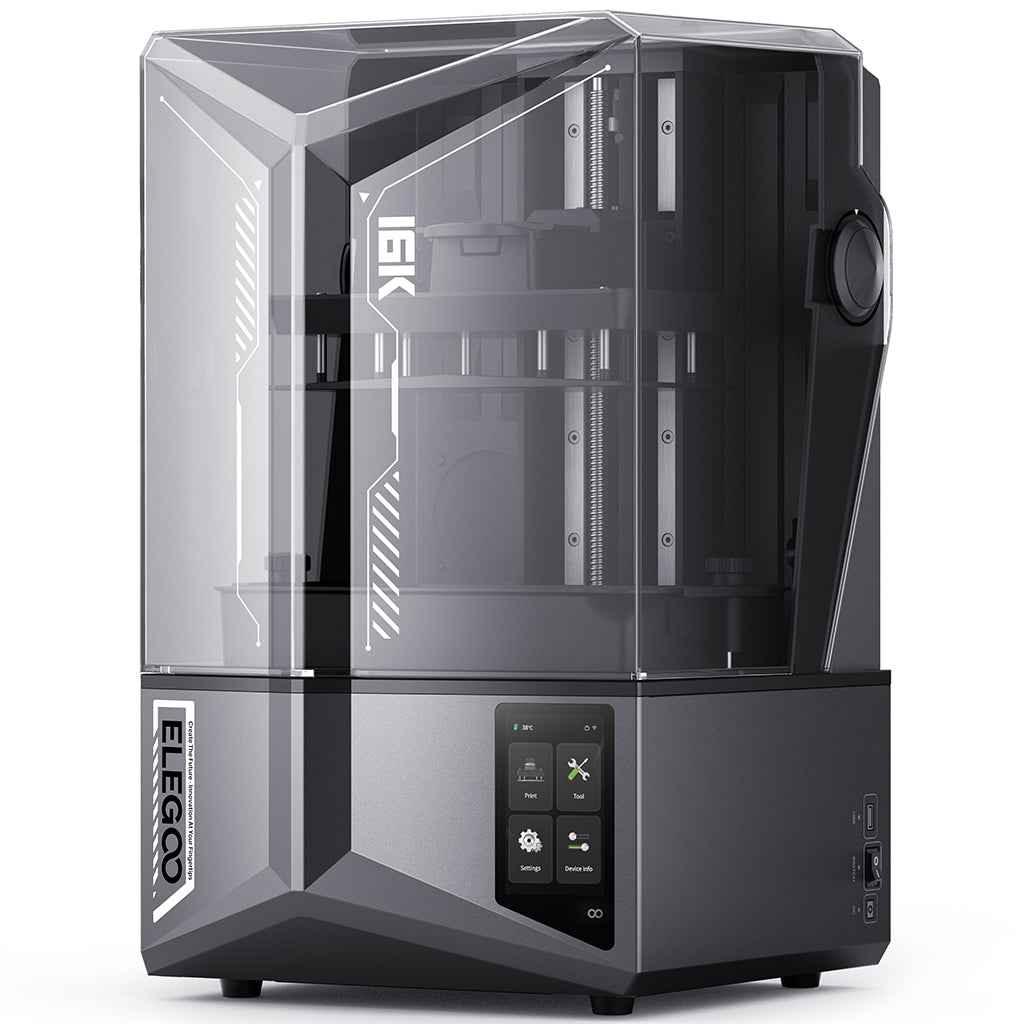

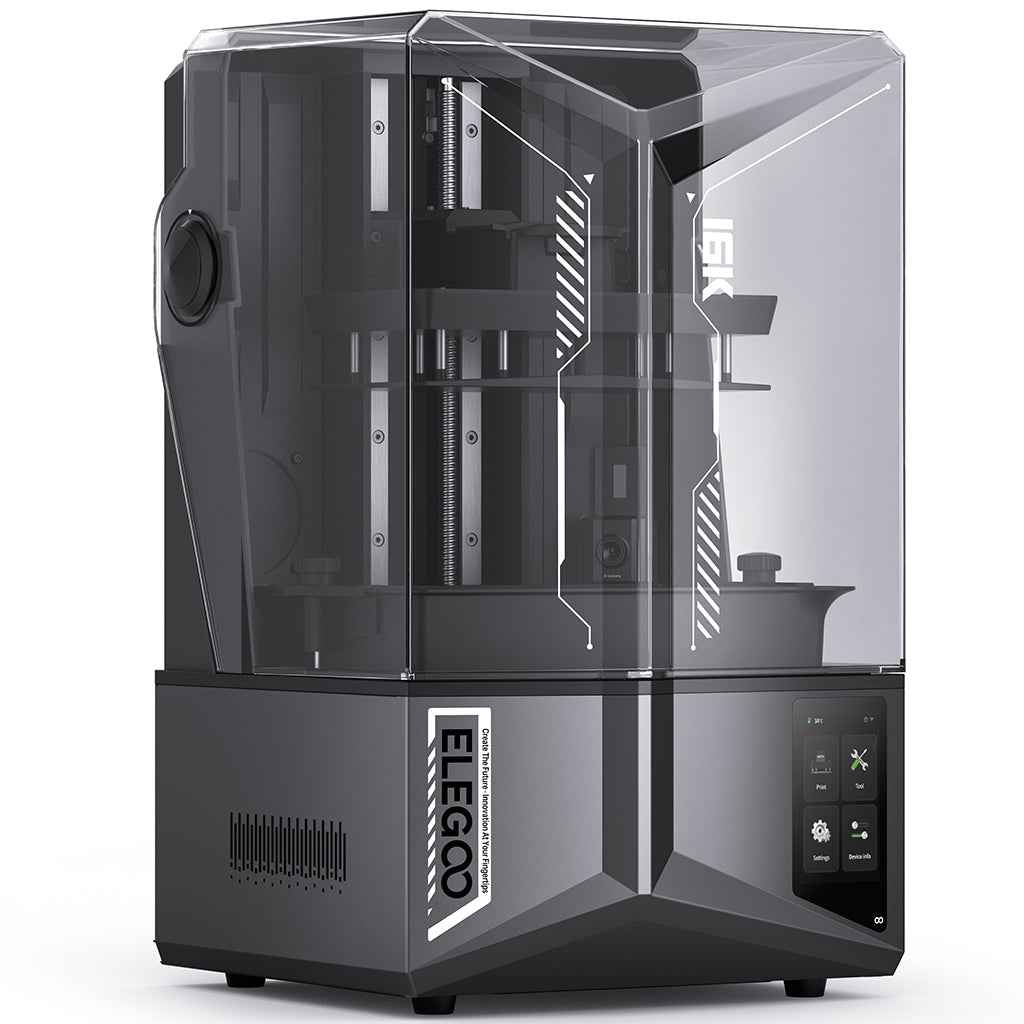

Saturn 4 Ultra 16K 3D Printer
R 15,499.00
The ELEGOO Saturn 4 Ultra 16K expands professional resin printing into ultra-high-resolution production while maintaining speed, stability, and reliability. Powered by an advanced 16K monochrome LCD and intelligent tilt-release technology, the Saturn 4 Ultra 16K enables creators to produce highly detailed models faster without compromising surface quality.
Featuring automatic levelling, smart resin management features, and an upgraded cooling and exposure system, the printer is designed for demanding workflows such as miniature production, jewellery design, dental models, prototyping, collectables, and high-detail engineering parts. The large build volume combined with 16K precision makes the Saturn 4 Ultra 16K ideal for creators who require exceptional surface finish, dimensional accuracy, and production efficiency.

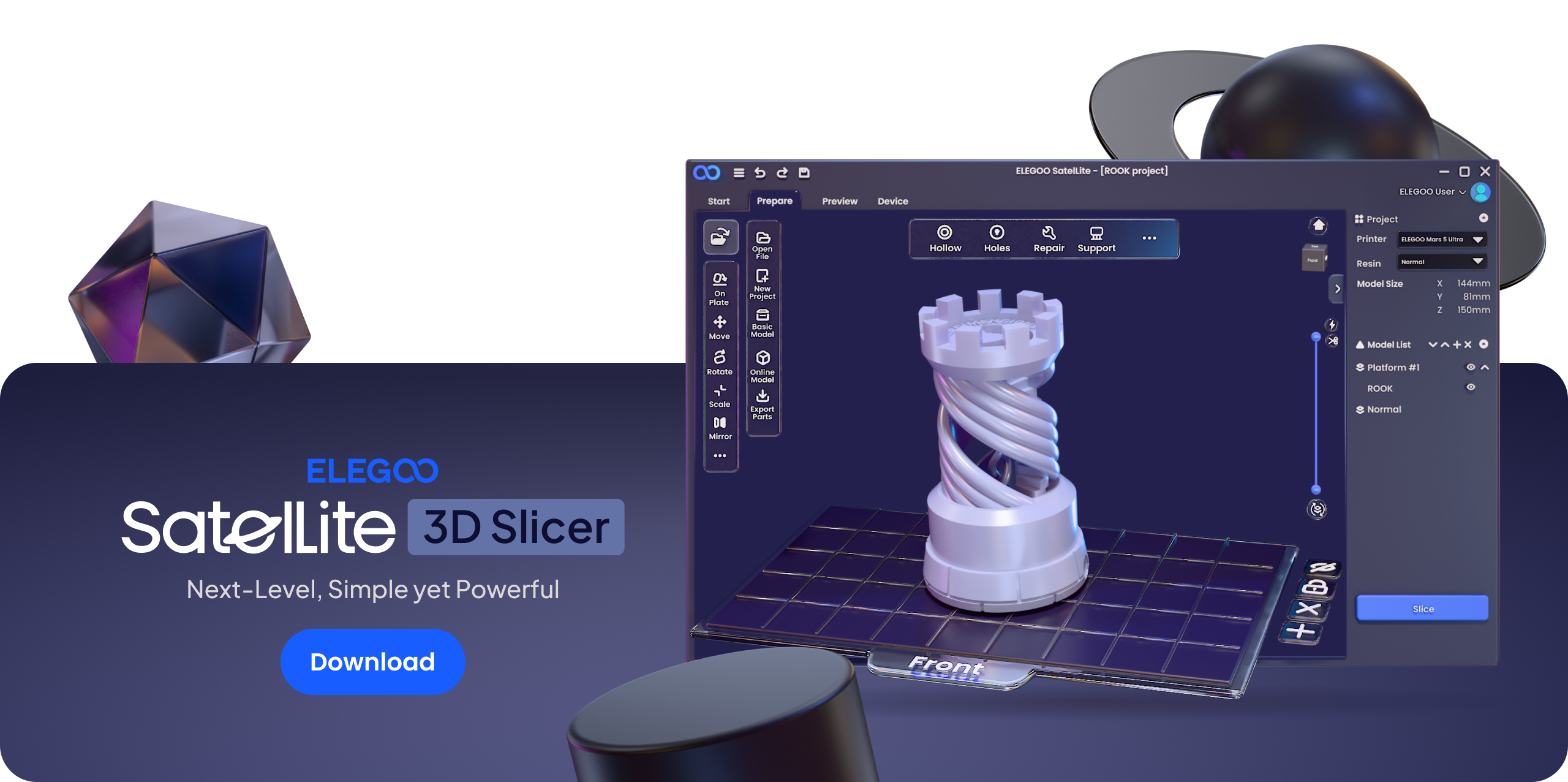

Software & Resources
You can easily access the recommended slicing software directly from the ELEGOO Africa website, where the latest version is available for download along with setup guides and supporting resources. This ensures you are working with the most up-to-date software optimised for the Saturn 4 Ultra 16K, allowing for a smooth setup process, simplified print preparation, and the best possible printing performance from day one.
Key Features
- 16K ultra-high-resolution monochrome LCD
- Tilt-release technology for faster print speeds
- Automatic self-levelling system
- COB + Fresnel collimated light source
- High-speed resin printing performance
- Large-format resin build volume
- AI smart monitoring and failure detection
- Built-in camera for remote monitoring
- Wi-Fi file transfer and remote control
- Enhanced cooling system for stable operation
Technical Specifications
Core System & Printing
| Feature | Specification |
| Printing Technology | MSLA (Masked Stereolithography) |
| Light Source | COB Light Source with Fresnel Collimating Lens |
| LCD Screen | 10-inch 16K monochrome LCD |
| XY Resolution | 14 × 19 μm |
| System Operation | Linux-based intelligent system |
| Levelling System | Fully automatic self-levelling |
| Z-Axis Structure | Precision dual linear rails |
| Maximum Print Speed | Up to 150 mm/h (material dependent) |
| Layer Height | 0.01 – 0.20 mm |
| Release Method | Intelligent tilt-release mechanism |
Build Volume & Hardware
- Build Volume (L × W × H): 218.88 × 122.88 × 220 mm
- Build Plate: Laser-engraved aluminium build platform / Sandblasted aluminium plate
- Resin Vat: Metal vat with replaceable release film
- Release Film: Replaceable high-transparency film
- Cover Type: UV-blocking lift-off cover
- Machine Dimensions: Approx. 327 × 329 × 548 mm
- Net Weight: Approx. 13.5 kg
Connectivity & Interface
- Display: Touchscreen control interface / Full-colour interactive display
- Connectivity Options: USB Drive, Wi-Fi
- Built-in Camera: Yes (remote viewing supported)
- Supported File Formats: STL, OBJ
- Supported Slicers: CHITUBOX, Voxeldance Tango, and compatible software
Smart Features
- Automatic self-levelling
- AI print failure detection
- Built-in monitoring camera
- Wi-Fi connectivity
- Power loss recovery
- Intelligent tilt release system
- Enhanced exposure uniformity
- Remote monitoring capability
Resin Compatibility
Compatible with standard 405 nm photopolymer resins, including:
- Standard Resin
- ABS-Like Resin
- Tough Resin
- Water-Washable Resin
- Plant-Based Resin
- High-detail engineering resins
- Dental and model resins (material dependent)

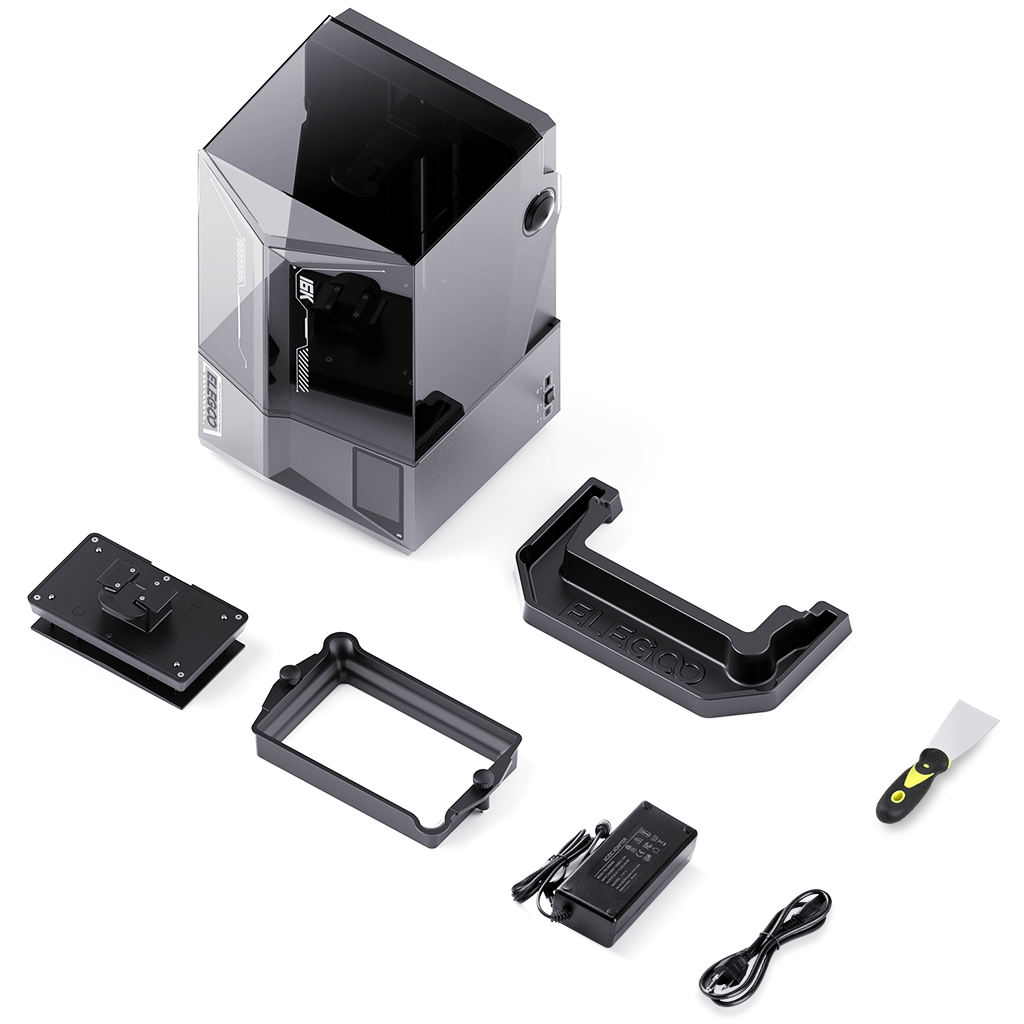

What’s in the Box
- 1 X ELEGOO Saturn 4 Ultra 16K Resin 3D Printer
- 1 X Build Platform
- 1 X Resin Vat
- 1 X Tool Kit
- 1 X USB Drive
- 1 X Power Cable
- 1 X User Manual
Add to your order
Standard Resin V1.0
R 399.00
Smart Tank Heating
Auto Levelling
Tilt Release Technology
Upgraded AI Camera
Smart Mechanical Sensor
16K Magic,
Precision Redefined
Designed to capture the finest details for exquisite models, Saturn 4 Ultra 16K boasts ultra-high resolution, ensuring that every model bursts with smooth surfaces, lifelike textures and impeccable precision.
15120 x 6230
Resolution
14 x 19 μm
XY Roslution
211.68 x 118.37 x 220 mm
Build Volume

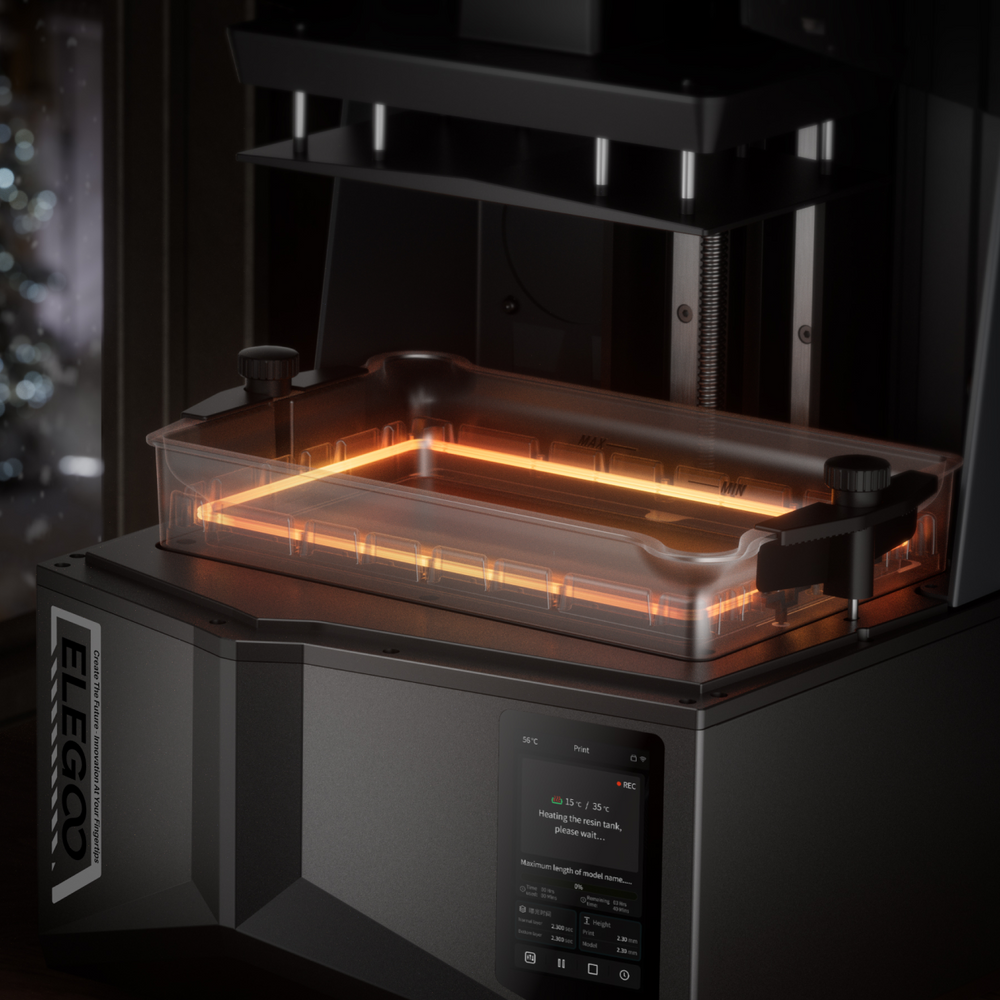

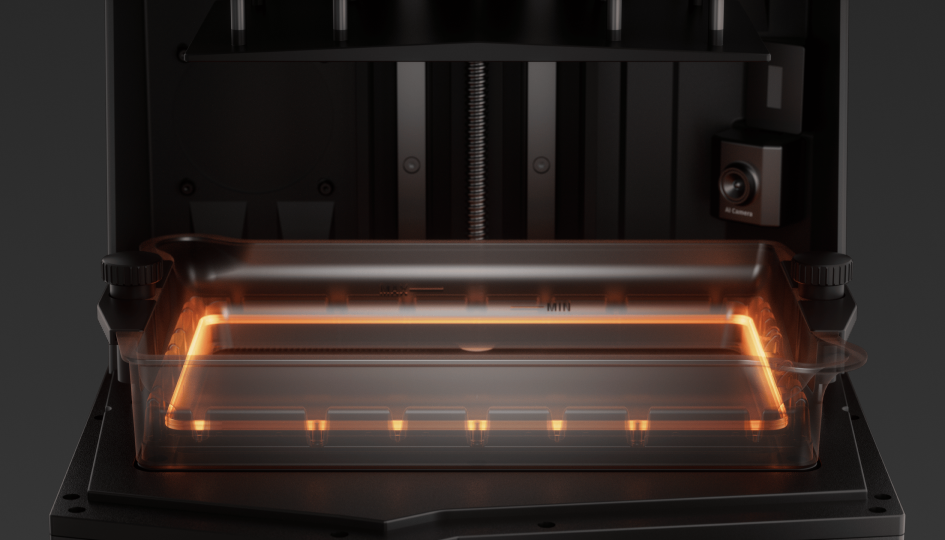

Smart Tank Heating, Flawless Prints at 30 °C
Saturn 4 Ultra 16K features an intelligent tank heating system... ensuring better fluid motion and layer adhesion. This drastically reduces defects... leading to higher success rates and better print quality.

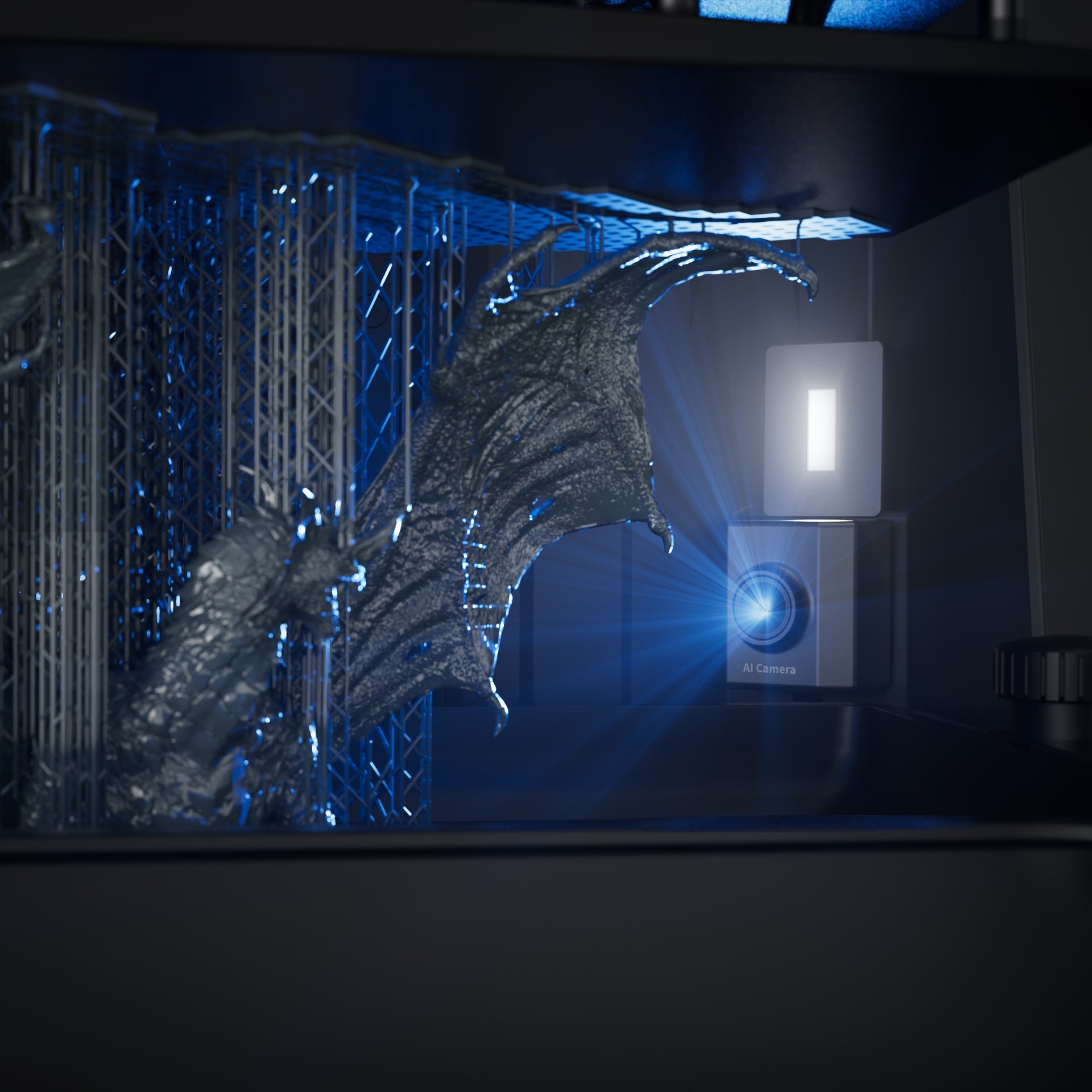

New AI Camera with Light for All-Day Monitoring
The AI camera offers real-time monitoring and instant alerts for empty build plates and warped models, enabling you to address them without delay. With a built-in chamber light, you can easily check on your print progress day or night, and the time-lapse feature lets you effortlessly capture and share your creative journey.

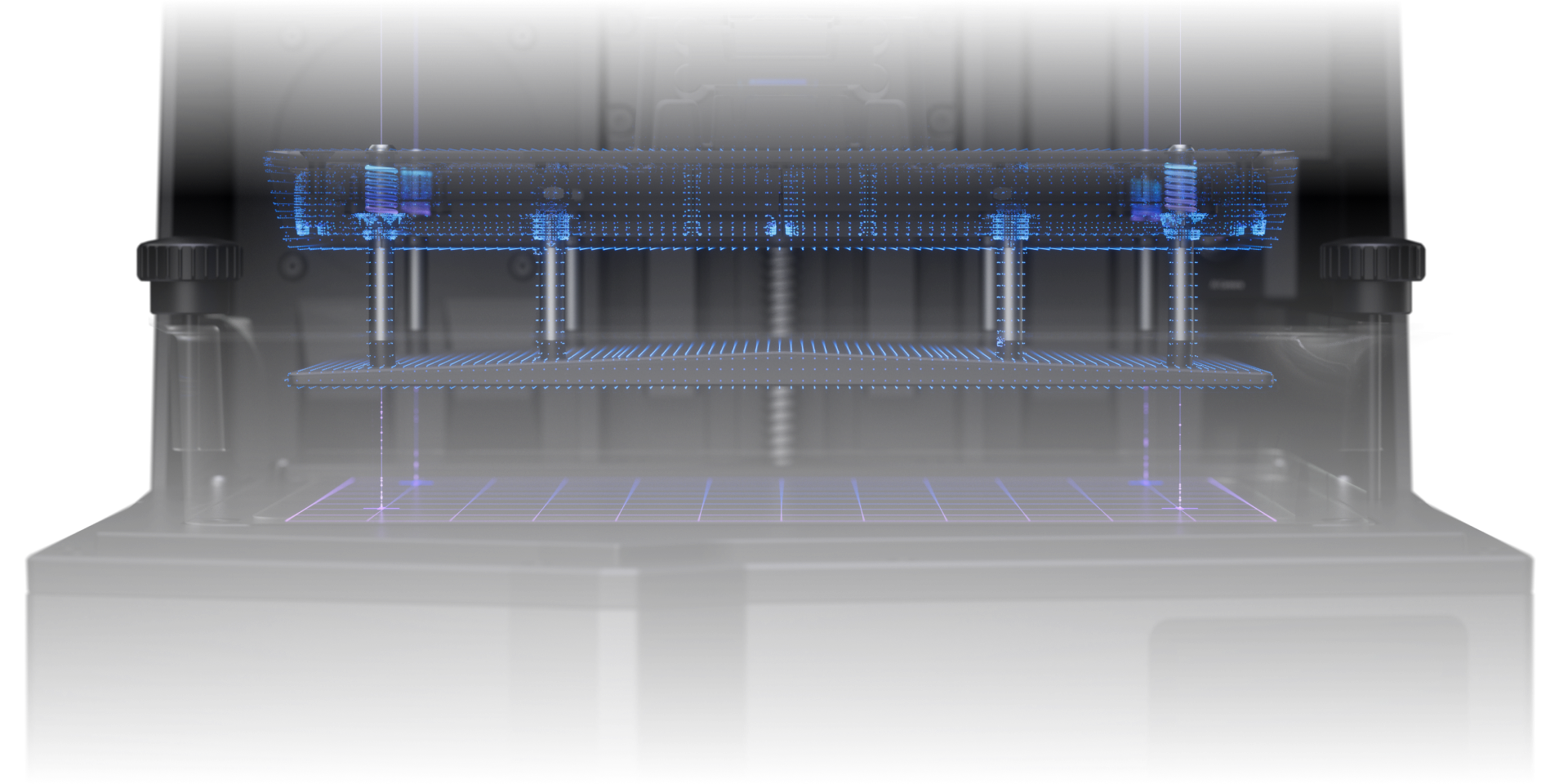

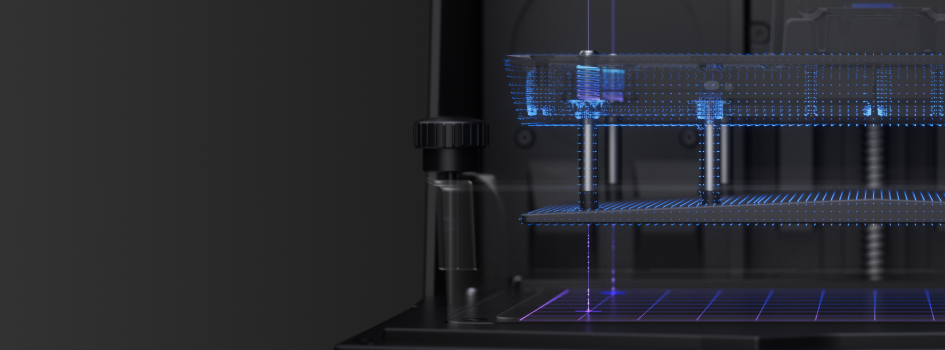

Auto Leveling,
Plug-N-Play
Achieve effortless precision with just a click. Saturn 4 Ultra 16K features automatic leveling with no manual adjustment needed. Its intuitive workflows and out-of-the-box performance make it as easy to use as a smartphone, perfect for users of all skill levels.

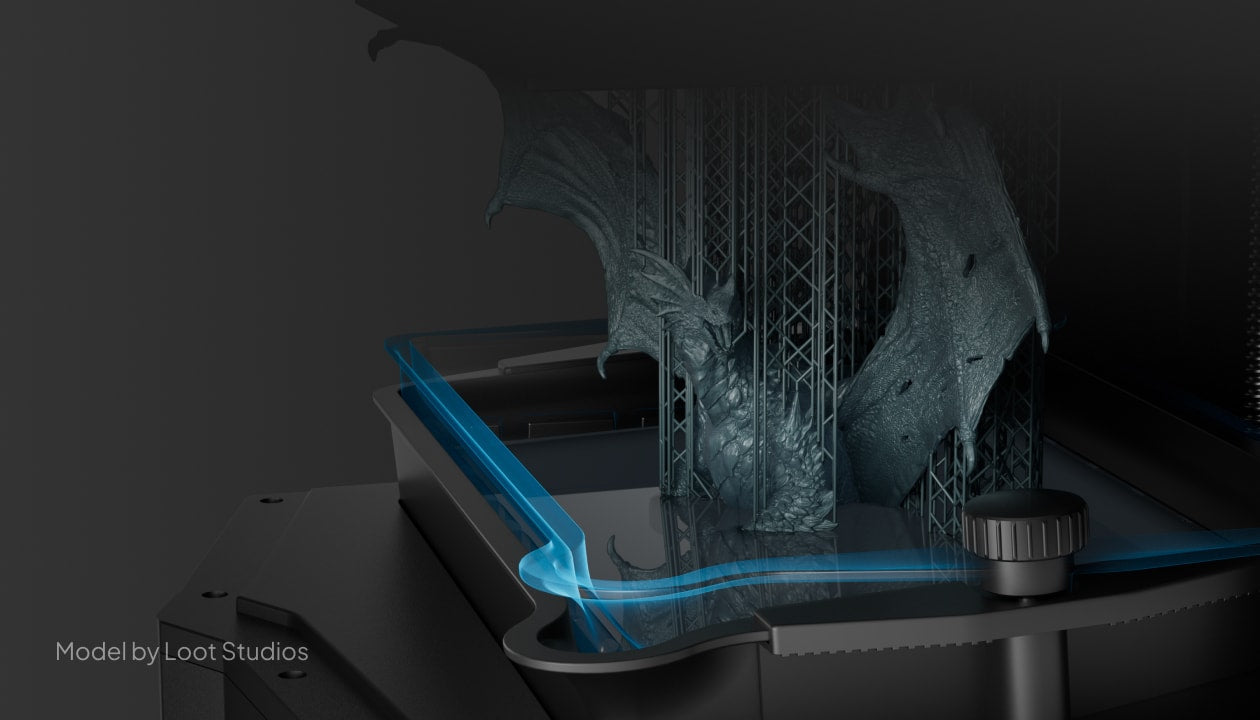

Tilt Release Innovation, Blazing Fast
Saturn 4 Ultra 16K features advanced tilt release technology... With impressive speeds of up to 150 mm/h, you can bring your most intricate designs to life... all while ensuring unmatched detail and quality in every print.
150
mm/h
Max Speed
5.5s
Each Layer
Under general parameter settings [1]
2X
Faster
Compared to Saturn 3 Ultra

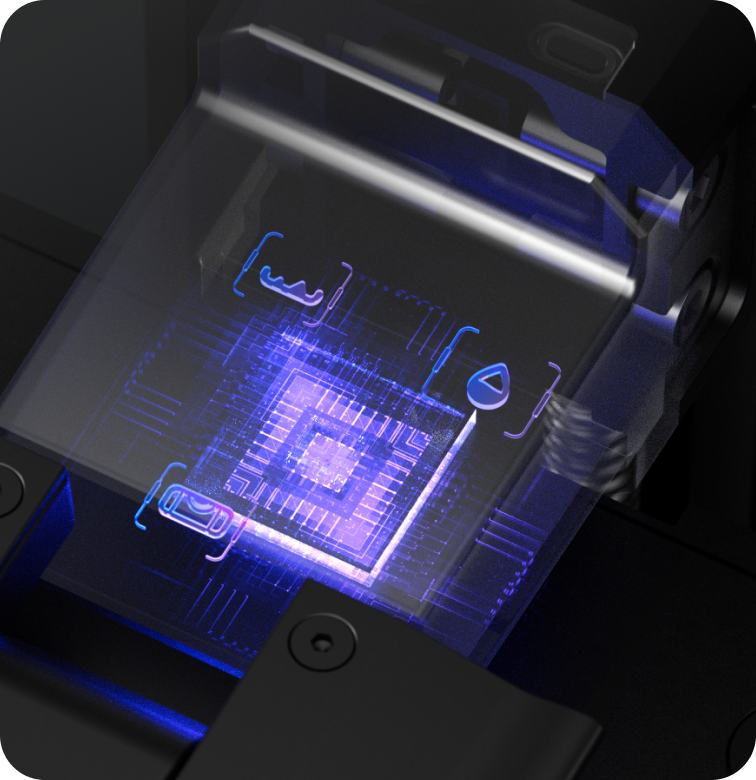

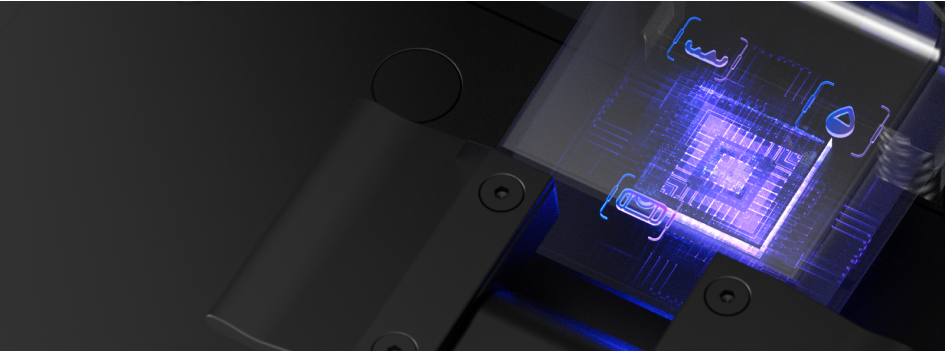

Print Smarter, Print Worry-Free
With a smart mechanical sensor, Saturn 4 Ultra 16K supports residue detection to prevent damage to the LCD screen. Plus, timely alarms for resin shortages and leveling failures minimize waste and ensure uninterrupted efficiency.
Safe & Efficient, Anytime
Advanced Overheating Protection
Saturn 4 Ultra 16K automatically pauses printing and alerts you when the LED temperatures exceed 80 °C, ensuring safe and reliable printing.
Power Loss Recovery
Saturn 4 Ultra 16K automatically picks up right where it stopped after a power outage – no more lost progress or wasted resin.
One-Tap Self-Check
With just a tap, Saturn 4 Ultra 16K performs a quick self-test, ensuring all components are ready for flawless results.
More Features
Wi-Fi Cluster Printing
Easily manage multiple printers via built-in dual-band Wi-Fi, streamlining your workflow and controlling all devices from one interface for large-scale projects.
Powerful Self-Developed System
Achieve outstanding performance with the advanced system, featuring OTA upgrades, a smart UI, and support for 12 languages for effortless project management.
Section-Based Exposure
Say goodbye to generic exposure settings. Fine tune the exposure time for each section to find the optimal setting and achieve flawless prints every time.
Seamless Print Speed Switch
Switch between fast and slow printing modes with ease. Whether you need quick prototypes or detailed models, adjust the settings to perfectly match your needs.
Laser-Engraved Build Plate
The laser-engraved surface provides strong adhesion, minimizing warping or detachment, while allowing for easy, damage-free model removal after printing.
PFA Release Film
The PFA release film offers superior non-stick performance, preventing resin adhesion and ensuring effortless peeling and release of printed parts. [2]
Tempered Glass LCD Protector
Keep your LCD screen safe with a robust 9H tempered glass protector, providing exceptional scratch and damage resistance for reliable, worry-free printing.
Compatible With Mars Mate Air Purifier
The Elegoo Mars Mate air purifier’s high-density activated carbon filter effectively absorbs resin odor, achieving up to 95% purification efficiency for TVOC.
Specifications
Hardware
LCD SCREEN
10-inch 16K Mono LCD
RESIN TANK
Smart Heating Tank
AI CAMERA
New AI Camera with Light
LIGHT SOURCE
COB Light Source + Fresnel Collimating Lens
OPERATING SYSTEM
4.0-inch Capacitive Touch Screen
BUILD PLATE
Laser-Engraved
RELEASE FILM
PFA
Printing Specifications
BUILD VOLUME
211.68 x 118.37 x 220 mm
PRINTING technology
MSLA
xy resolution
14 × 19 μm (15120 × 6230)
Z-AXIS ACCURACY
0.02 mm
LAYER THICKNESS
0.01 - 0.2 mm
PRINTING SPEED
150 mm/h Max Speed
Fast/Slow Modes
RELEASE TECHNIQUE
Tilt Release
LEVELLING METHOD
Auto Levelling
EXPOSURE SETTING
Section-Based
System
SYSTEM
EL3D-4.0
CONNECTIVITY
USB & Built-in WiFi
OTA FIRMWARE UPGRADE
Supported
LAUGUAGE
Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese
SLICING SOFTWARE
SatelLite & Chitubox
Power & Cooling
HEAT DISSIPATION METHOD
4 Copper Heat Pipes + Single Fan
AIR PURIFIER
USB Unavailable; Compatible with Mars Mate
POWER REQUIREMENTS
100-240 VAC, 50/60 Hz, 24V 6A
Size & Requirements
PRINTER DIMENSIONS
327.4 × 329.2 × 548 mm
NETT WEIGHT
16.1 kg
GROSS WEIGHT
18.7 kg
What's in the Box
Saturn 4 Ultra 16k 3D Printer
Build Plate
Nozzle Wiper Assembly
Power Cord
4-Pin Cable
Spool Holder Module (x4)
Filament Hub
CANVAS Mounting Bracket
Thermal Cover
Unclogging Pin
Allen Key
Screwdriver
Filament Sample
Spare Nozzle Wiper
User Manual
USB Flash Drive
Scraper Blade
PTFE Tube (x4)
